Self-Adjusting Ferrule Crimping Tool Set

Self-Adjusting Ferrule Crimping Tool Set – Ratchet Crimper with 1,200 Color-Coded Wire-End Sleeves (AWG 23–10)

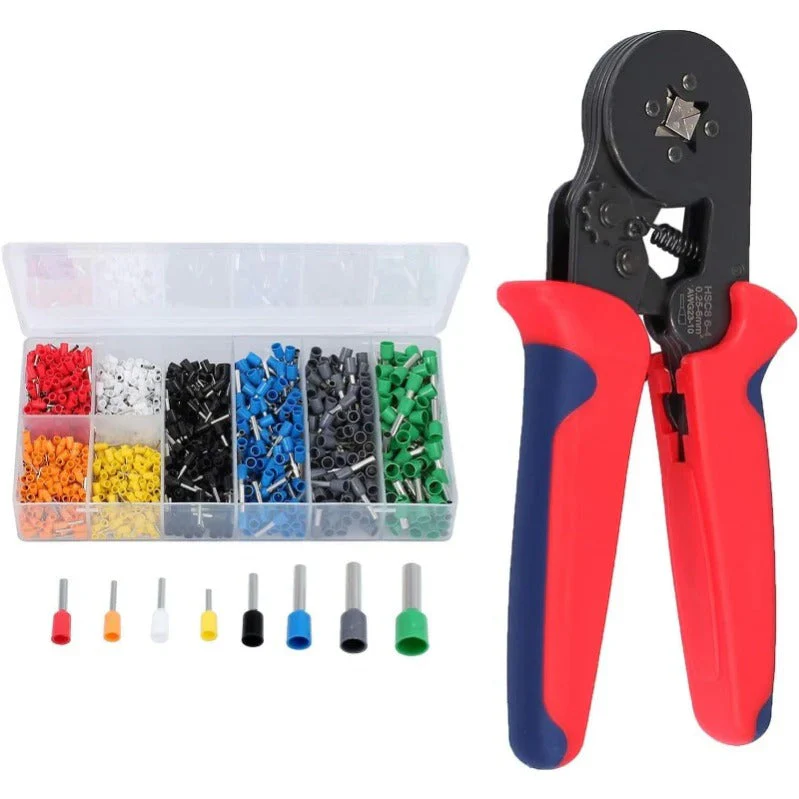

1. All-in-One Crimping Kit with 1,200 Ferrules

Includes a high-precision square crimper and 1,200 tinned-copper wire-end sleeves in 8 standard IEC color codes—ideal for electrical projects at home, in vehicles, or control cabinets.





2. Ergonomic Handle with Ratcheting Assist

Compound ratchet multiplies grip strength while textured dual-material handles provide superior comfort and control—great for long jobs or tight spaces.





3. Four-Sided Square Crimping Jaws

Precision-ground mandrels compress evenly from all directions, forming clean, gas-tight connections with no loose strands—perfect for push-in terminals and PLC setups.





4. Auto-Adjusts to Wire from 0.25–6 mm²

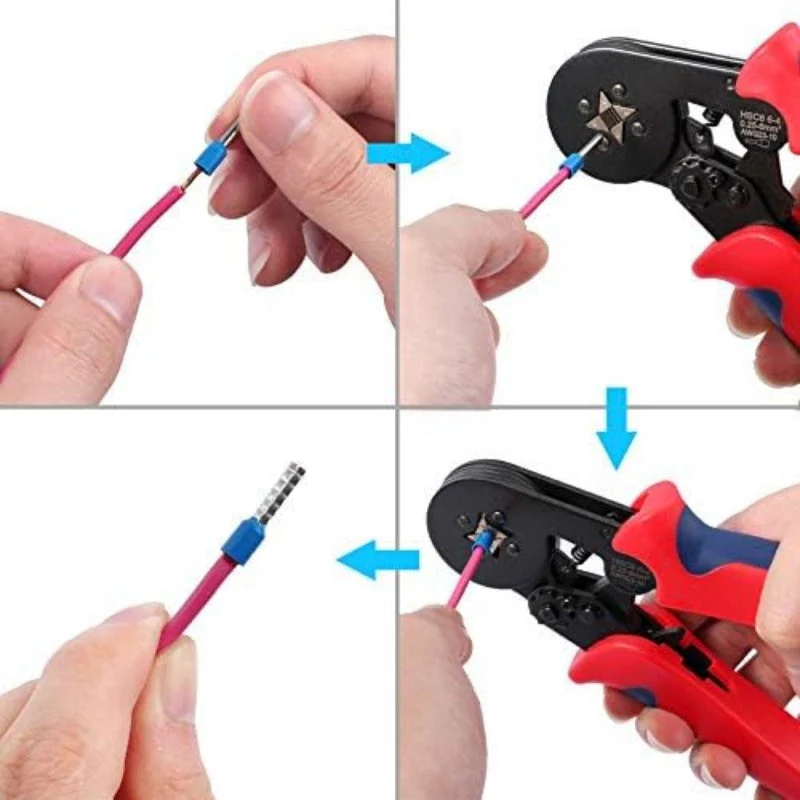

No dials or die swaps needed. Just insert a ferrule and the tool auto-centers on AWG 23–10 sleeves—easy, accurate, and foolproof.

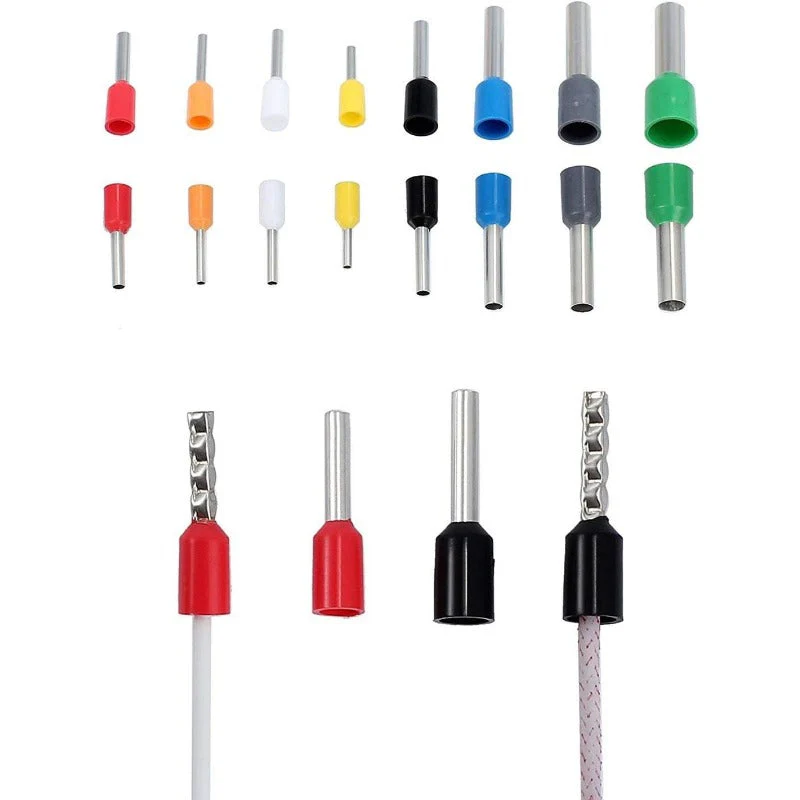

5. Quick-Identify Color-Coded Ferrules

Each sleeve features an industry-standard collar color for fast gauge matching—no more sorting or second-guessing in the field.





🛠 Technical Specs

Crimp capacity	0.25–6 mm² │ AWG 23–10
Crimp shape	Four-point square

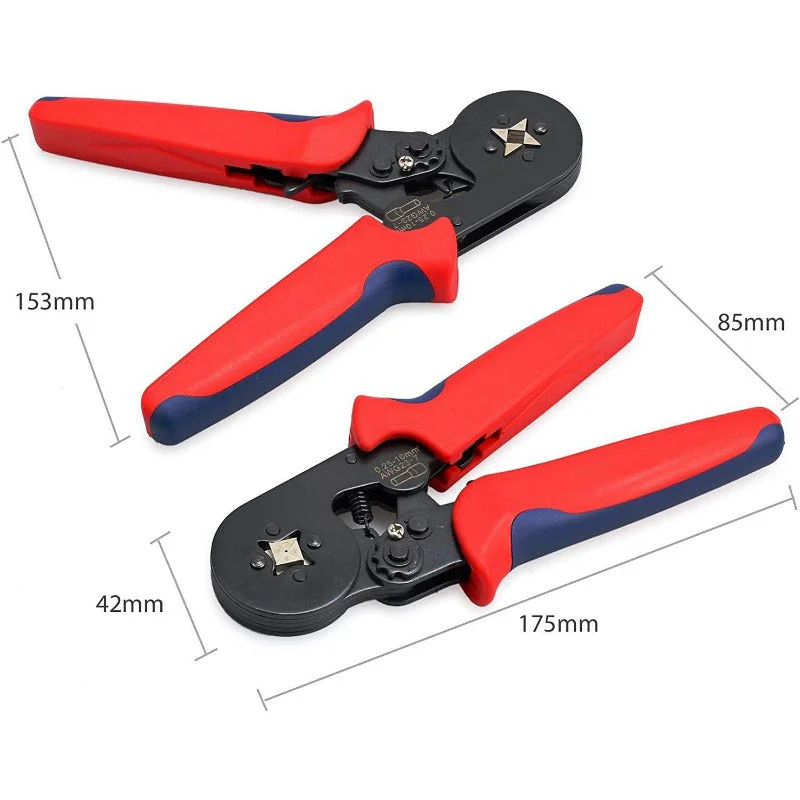

Tool length	175 mm / 6.9 in
Tool weight	≈ 380 g / 13 oz
Handle construction	PA + TPR dual-injection

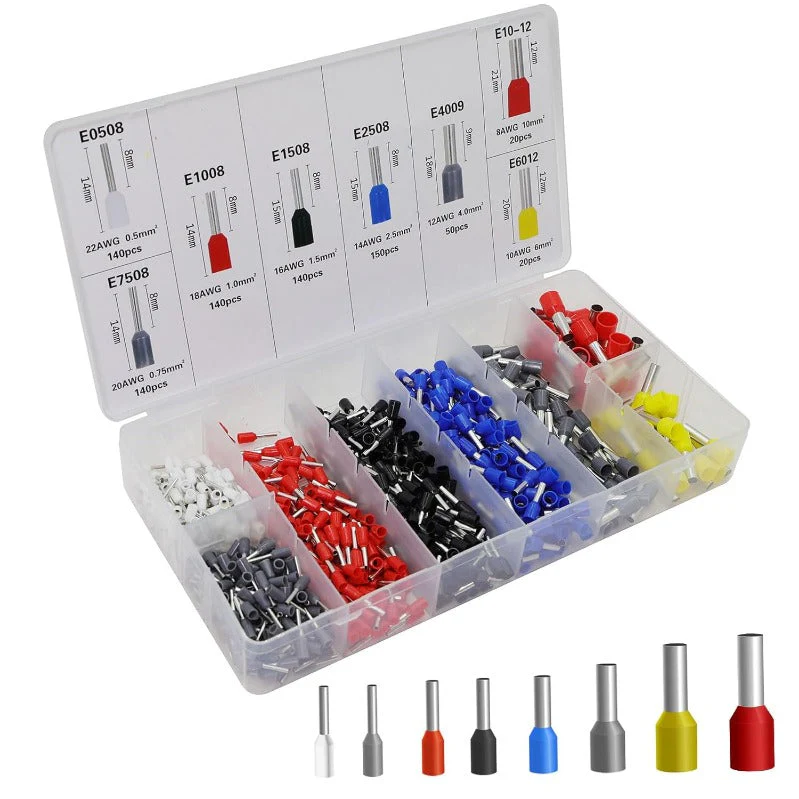

Ferrule assortment	1,200 pcs (tinned copper with PVC collars)

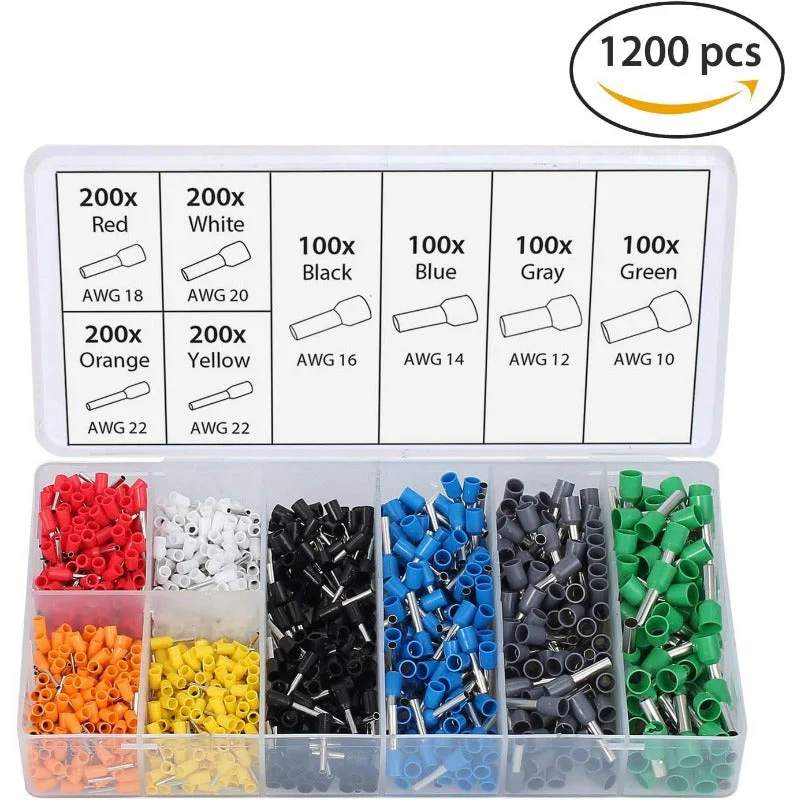

Ferrule breakdown	200× AWG 22 (orange) · 200× AWG 20 (yellow) · 200× AWG 18 (red) · 200× AWG 20 (white) · 100× AWG 16 (black) · 100× AWG 14 (blue) · 100× AWG 12 (gray) · 100× AWG 10 (green)
Storage case size	22 × 10 × 3.5 cm
Maintenance tip	Lubricate pivot monthly; store in a dry place
Safety precautions	Ensure power is off before use; wear protective glasses

💬 FAQ

Q • Will this crimp plain uninsulated sleeves?
A • Yes—it delivers a square crimp on bare tinned ferrules just as well.

Q • How do I adjust the ratchet tension?
A • Use the micro-adjust screw near the hinge. Factory settings are precise, but you can fine-tune if needed.

Q • Can it crimp twin-wire ferrules?
A • This model is for single-conductor sleeves. For twin ferrules, consider a dual-entry crimper.

Q • Are the ferrules RoHS-compliant?
A • Yes—all components meet RoHS and REACH standards; collars are halogen-free PVC.

Q • What if I need more of a specific size?
A • Contact our team with your order number—we’ll send out refill packs within 48 hours.
